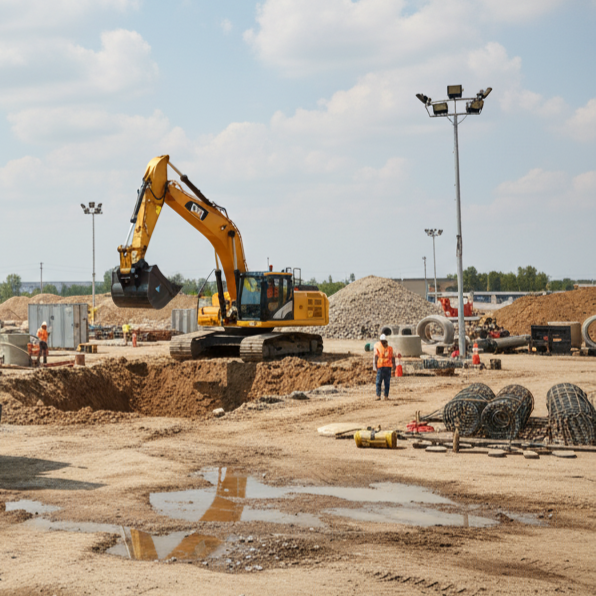

How wide does my bucket need to be to dig the perfect trench?
If you have ever tried to dig a perfect set-width trench with an excavator, you may have noticed something confusing. A bucket labeled “14 inch trench bucket” does not always produce a trench that measures exactly 14 inches.
Why? Because excavator bucket width can be measured at several different points:
- The outside of the teeth
- The outside of the cutting edge
- The outside of the bucket shell
And those three dimensions are rarely the same.
Understanding which dimension actually defines your trench width can save contractors, dealers, and attachment buyers a lot of frustration.
The Three Widths on an Excavator Bucket
Taurox excavator trench buckets are designed with our TwinTaper™ Design – The tapered sides front to back and bottom to top make the cutting edge the widest part of the bucket, enabling operators to focus on the cutting edge while reducing wear on the bucket's sides, and easily releasing material. So the cutting components are slightly wider than the bucket shell. This also prevents the bucket from binding against the trench walls and kicking material back into your trench.
Here is how the dimensions typically stack up.
1. Teeth Width (Usually the Widest Point)
The outside-to-outside measurement of the teeth is usually the widest part of the bucket.
Teeth commonly extend ½ to 1 inch past the cutting edge on each side, depending on the tonnage class, tooth system, and adapters used.
Because the teeth are the first point of contact with the soil, they typically define the maximum trench width.
14" Bucket Example:
| Component | Approx Width |
|---|---|
| Teeth (outside to outside) | 14.5 – 15 inches |
| Cutting edge | 14 – 14.5 inches |
| Bucket shell | 13.5 – 14 inches |
In many real-world digging situations, the outside of the teeth determines the trench width.
2. Cutting Edge Width
The cutting edge is usually slightly narrower than the teeth but wider than the bucket shell.
On buckets that use flush-mounted teeth or bolt-on edges, the cutting edge can sometimes define the trench width.
This is common with smooth edge trenching buckets designed for cleaner trench walls.
3. Bucket Shell Width
The bucket shell is typically the narrowest part of the bucket.
Manufacturers intentionally design it slightly narrower so:
- The bucket can move freely in the trench
- The operator experiences less drag
- Soil can release from the bucket more efficiently
If the shell were the same width as the teeth, the bucket would bind against the trench walls constantly and potentially knock material back in the trench or even cave the trench in.
The Contractor Rule of Thumb
Most experienced operators know that soil conditions rarely allow a perfectly precise trench anyway.
Loose material, sidewall crumble, and bucket movement typically widen the trench slightly.
Because of that, many contractors follow a simple rule:
Choose a bucket 1-2 inches wider than the pipe or conduit and 1-2 inches narrower than your ideal trench width.
This provides:
- Easier pipe placement
- Room for bedding material
- Less risk of trench wall collapse
Trying to maintain a trench that is exactly the same width as the pipe can slow productivity dramatically.
How Manufacturers Actually Measure Bucket Width
One thing that surprises many equipment dealers is that there is no universal standard for bucket width measurement.
Different manufacturers may reference different points on the bucket.
Because of these variations, it is always best to confirm:
- Outside tooth width
- Cutting edge width
- Shell width
This ensures the bucket will perform exactly as expected for the job.
Why This Matters for Dealers and Contractors
For equipment dealers and contractors, understanding these differences helps avoid common problems such as:
- Buckets that dig wider trenches than expected
- Pipe installations that require excessive bedding
- Attachments that do not meet municipal trench specifications
Simply asking “Is that measured at the teeth or the edge or the bucket shell?” can eliminate a lot of confusion.
The Bottom Line
If your goal is to dig a true 14-inch trench, the dimension that usually matters most is:
Outside-to-outside of the teeth.
That is the point most likely to define the trench width in real digging conditions.
The cutting edge and shell are intentionally narrower to allow the bucket to move efficiently through the trench.
